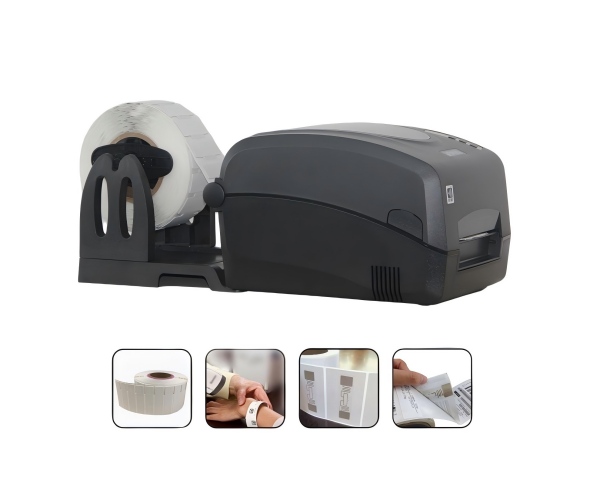

This is the best UHF RFID desktop printer for you, the small, easy-to-use printer delivers advanced features in a compact footprint for convenient.

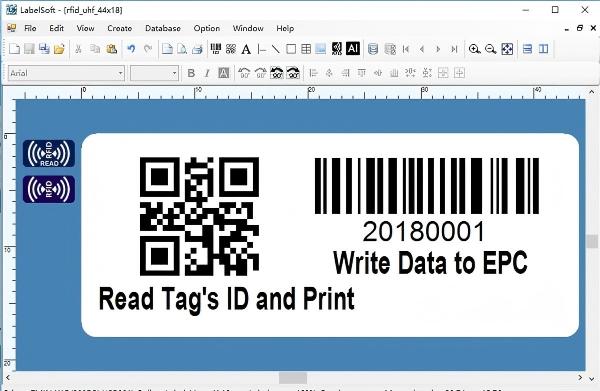

LabelSoft is a powerful three-in-one software for reading, writing and printing RFID tags.
Features
It supports reading the tag ID and converting it to text or barcode and printing it on the current label at the same time, and can write the specified data to the label.
The printer's functions of reading code, writing code and real-time status feedback are all at the front end of the industry. The machine intelligent learning algorithm is adopted to avoid misreading, miswriting, rereading, rewriting, etc. The bad label automatically prints the mark and can replace some label initialization.
The printer's unique one-button auto-calibration function, combined with the computer-based visual RFID calibration tool, allows quick and easy parameter setting for all types of labels, eliminating the need for cumbersome manual operations.
High Performance, Intelligent & Efficient
• Stable and reliable, easy to use
• Supports Windows and Linux systems
• Support flexible anti metal labels
• Support RFID reading and writing
• Fastest 6 inches/second printing
• Full featured label design software
Model | ETR-900U |
Printing method | Direct thermal & Thermal transfer |
Resolution | 300 DPI (11.8dots/mm) |
Maximum print speed | 6 IPS (152.4mm/s) |
Maximum print width | 4.15″ (105.6mm) |
Maximum print length | 78.7″ (2000mm) |
Memory | 8 MB Flash ROM, 16 MB SDRAM |
Media | Roll-feed, die-cut, continuous, fan-fold, labels, tickets in plain paper or thermal paper |
Ribbon | Wax, Wax/Resin, Resin |
Media sensor | Adjustable reflective & Transmissive |
RFID function | Integrated high performance RFID reader/encoder supports labels compatible with UHF EPC Gen 2/ISO 18000-6C |
Bar Code Types | 1D Barcode : Code 39，Code 93，Code 128，Codabar，EAN-8/13/128，Interleave |
Interfaces | RS-232, USB, LAN |
Power rating | 24 VDC, 2.0 A |
Weight | 2.65KGS |
Dimensions | W208 x D310 x H195 mm |
Operation environment | Temperature: 32° F ~ +104° F (0° C ~ 40° C) |
Storage environment | Temperature: -40° F ~ +140° F (-40° C ~ 60° C) |
Options | External label bracket, Peeler, Bluetooth module |
Application Areas
• Manufacturing:
It is used for real-time monitoring of production data, quality tracking, automated production, etc.
• Logistics:
It is used for cargo tracking, automatic information collection, warehouse applications, port applications, postal express, etc.
• Retail:
It is used for real-time monitoring of commodity sales data, anti-theft, self-service shopping in unmanned supermarkets, etc.
• Medical:
It is used for medical device management, patient identification, baby anti-theft, etc.
• Identity identification:
It is used for various electronic certificates such as e-passports, identity cards, and student ID cards.
• Military:
It is used for ammunition management, firearm management, material management, personnel management, vehicle identification and tracking, etc.
• Anti-counterfeiting and security:
It is mainly used for anti-counterfeiting of valuable items (cigarettes, alcohol, medicines), ticket anti-counterfeiting, car anti-theft, and car positioning, etc.
• Asset management:
It is used for the management of various types of assets that are valuable, highly dangerous, large in quantity, and highly similar.
• Transportation:
It is mainly used for non-stop toll collection, taxi management, bus hub management, railway locomotive identification, air traffic control, passenger ticket identification, and luggage tracking, etc.
• Food:
It is used for the growth of fruits and vegetables, the preservation and traceability of fresh food, etc.
• Book:
It is used for the management of books and materials in bookstores, libraries, and publishing houses, etc.
• Animal:
It is used for animal domestication, pet identification management, and wildlife tracking, etc.
• Agricultural:
It is used for the monitoring and traceability of the growth of livestock and agricultural products, ensuring green agriculture and the safety of agricultural products.
• Power management:
It is used for real-time monitoring of the power operation status, real-time monitoring of power load, power consumption inspection, and line loss, etc., to achieve efficient integrated management.
• Electronic payment:
It is used in departments such as banks and retail, and payment methods such as bank cards or recharge cards are used for payment.
• Smart home:
It is used for the interconnection and intercommunication of various electronic products, communication products, and information appliances in the home to achieve a smart home.
