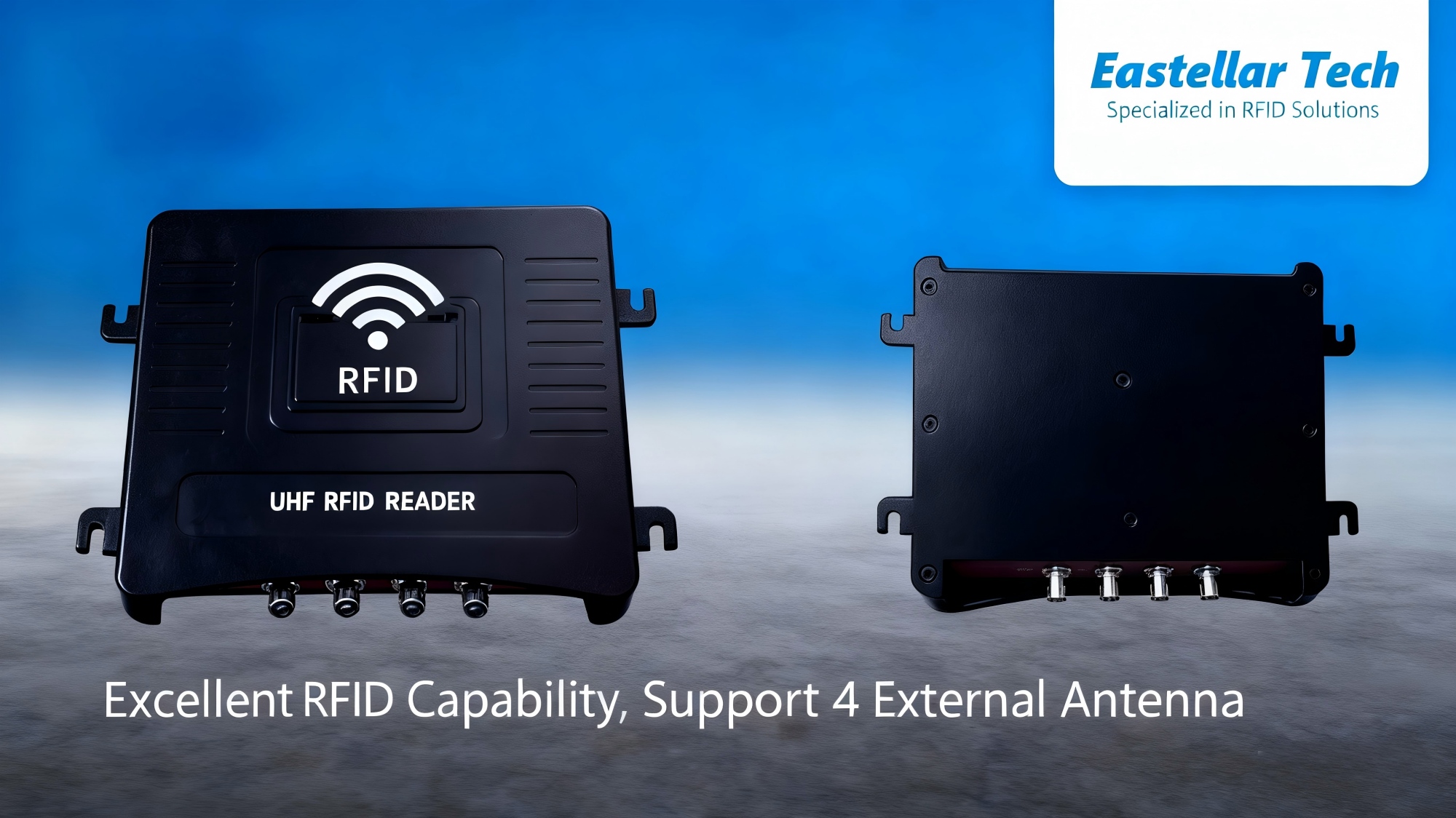

Appearance:

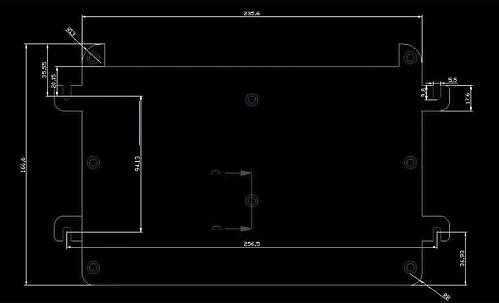

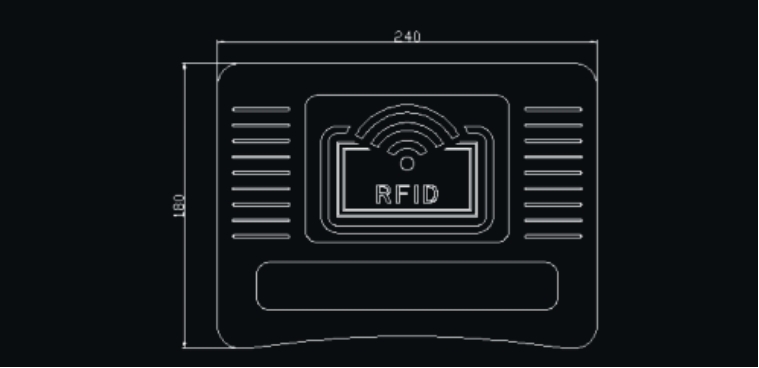

Installation Dimension:
Features:
Antenna split design
External four-channel antenna
Fast reading rate, multi-tag identification
Multiple communication interface: Standard Configuration RS232, RS485, RJ45 (TCP/IP), WIFI (optional)
Model | D9153 Pro |
Product Performance | |
Type | 4-channel fixed rfid reader |
Dimension | 275*185*26mm |
RFID chip | Impinj R2000/E710 |
Operate mode | Frequency-Hopping Spread Spectrum (FHSS) |
Frequency | ISM 902~928MHz, ISM 865~868MHz Other frequency bands can be customized |
Protocol | ISO18000-6B, ISO18000-6C（EPC GEN2） |
Output power | 0-30dBm software adjustable |
Module self-test | Prevent the module from crashing and freezing, and automatically restart the crash |
Power Supply | DC+ 9-24V power supply (with AC/DC power adapter) |
Reading tips | Buzzer & LED |
Antenna | 4 Channels, TNC port |
Reading distance | It is related to the gain of the external antenna. For example, when an external 12dBi antenna is connected, the reading distance is more than 8 m. |
Working temperature | -35℃ ~ +65℃ |
Storage temperature | -45℃ ~ +85℃ |
Humidity | 10% - 95% |
Input & Output | 2 output (controllable high and low level output), 1 input (can receive external high and low level signal) |
Communication interface | Standard Configuration RS232，RS485， RJ45（TCP/IP）WIFI (optional) |
Electrical Performance | |
Power Supply | DC 9V, limit 24V |
Working Current | 0.5A, maximum 1.2A |
Interface Parameters | |
DB9 Interface | 2: TXD 3: RXD 5: Ground The rest is reserved |
DB10 Interface | 1：RS485+ 2：RS485- 3：Input1－ General-Purpose Optocoupler Isolated Input 1－ 4：Input2－ General-Purpose Optocoupler Isolated Input 2－ 5：Output1 General-Purpose Optocoupler Isolated Output 1 6：Output1 General-Purpose Optocoupler Isolated Output 1 7：Output2 General-Purpose Optocoupler Isolated Output 2 8：Output2 General-Purpose Optocoupler Isolated Output 2 9：Input1＋ General-Purpose Optocoupler Isolated Input 1＋ (Pull-up to 3.3V via 1kΩ resistor; pull-down to ground optional) 10：Input2＋ General-Purpose Optocoupler Isolated Input 2＋ (Pull-up to 3.3V via 1kΩ resistor; pull-down to ground optional) |
Input/output interface | 2 input optocoupler, 2 relay output |
Communication Interface | RS-232/RS485/TCP/IP/Wiegand 26/Wiegand 34/ Optional: WIFI/ Bluetooth |
Network Interface | 10M/100M adaptive Ethernet |
Development Parameters | |
Instruction Set | C language instruction set |
Demo | Provides C#, JAVA, and Android demo software and source code |
SDK | VC, JAVA, android |
Firmware upgrade | Support personalized firmware upgrades |
Typical Applications:
Logistics and Warehouse Management: Managing the flow of goods, storage operations, and logistics including mail, parcels, and baggage transportation.
Smart Parking Management: Automated parking lot management and fee collection systems.
Production Line Management: Identifying designated production stages.
Product Anti-Counterfeiting Inspection: Using write protection functions in label memory to authenticate product authenticity.
Other Applications: Widely implemented systems include club management, library operations, student enrollment tracking, consumption management, attendance monitoring, cafeteria management, and swimming pool administration.
