• It is suitable for indoor or outdoor scenarios, with stable and reliable performance.
• This product uses FR-4 material as the base material. With excellent reliability and consistency, it is widely used in metal environment scenarios such as asset management, logistics, equipment management, and internal production management of enterprises.
• It is easy to deploy, has a compact structure, and is drop-resistant.

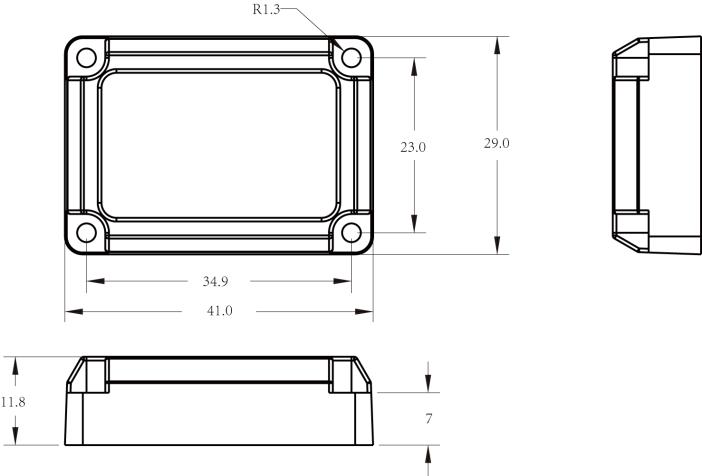

Dimensional Drawing
Features
• High temperature resistant
• Chemical resistance: PH0 ~ PH14, or other liquids compatible with PEEK
• IP68, IP69K-rated waterproofing
• Capable of surface color printing and customized data printing
Item | Specification |
Dimensions (L×W×H) | 41*29*11.8mm Hole: Ø2.6mm*4 |
Operating Frequency | 902-928MHz / 866-868MHz |
Adhesive Backing | Optional |
Customization options | Screen printing, laser coding, UV inkjet printing |
Protocols Supported | ISO/IEC 18000-6C / EPC Class1 Gen2 |
Data | 128bit EPC / 0bit user memory / 96bit TID |
Tag Material | ABS or alternative materials |
IP Rating | IP68, IP69K |
Chemical Resistance | PH0 ~ PH14 or other liquids compatible with PEEK |
Bare tag colors | Black, color can be customized |
Recommended* Operating Temperature | -40℃ to +150℃ |
Recommended* Storage Temperature | -60℃ to +250℃ |
Type | Passive |
Read/write range | 2 meters around on metal surface (tested with R2000 module handheld, power 30dBm, depending on environment and equipment) |
Application Areas
• Automotive Manufacturing • Steel & Metallurgy
• Chemical & Petroleum • Medical Sterilization
• Industrial Laundry • Food Processing
• Power & Energy • Aerospace
