• Crafted from premium plastic, it offers exceptional durability and ease of processing, making it ideal for asset management, logistics, equipment maintenance, and enterprise production management in metal-rich environments.
• Compact design with stylish appearance, easy installation, and drop-resistant construction.

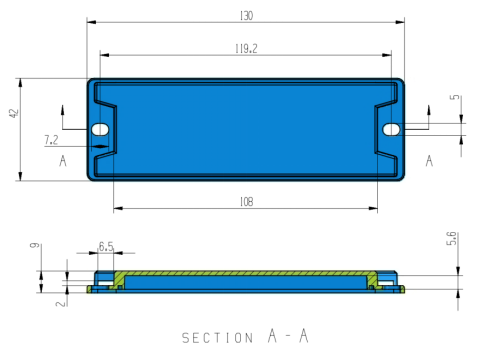

Dimensional Drawing
Features
• High sensitivity
• Adhesive-backed or screw-mounted installation
• IP65-rated waterproofing
• Capable of surface color printing and customized data printing
Item | Specification |
Dimensions (L×W×H) | 130*42*9.5mm Hole: 6.5mm(maj.)×5mm(min.)*2 |
Weight | 40g |
Antenna | Aluminum+PET |
Chip Interconnection Method | Flip-Chip Bonding |
Operating Frequency | 902-928MHz / 866-868MHz |
Adhesive Backing | Optional |
Customization options | Screen printing, laser coding, UV inkjet printing |
Integrated Circuit (IC) | M781 |
Protocols Supported | ISO/IEC 18000-6C / EPC Class1 Gen2 |
Data | 96/128bit EPC / 512bit user memory / 96bit TID |
Tag Material | ABS or alternative materials |
Assembly Method | Ultrasonic welding |
Bare tag colors | Black, blue-green, orange, yellow and gray optional |
Recommended* Operating Temperature | -20℃ to +55℃ |
Recommended* Storage Temperature | -20℃ to +80℃ |
Type | Passive |
Read/write range | 20 meters on metal surface (tested with R2000 module handheld, power 30dBm, depending on environment and equipment) 12 meters on non-metal surface (tested with R2000 module handheld, power 30dBm, depending on environment and equipment) |
Application Areas
• Warehouse logistics management, pallet management
• Container management, vehicle management, heavy equipment management
