• Ideal for indoor environments, it ensures stable and reliable operation.
• Featuring a flexible material base, it demonstrates exceptional reliability and consistency, making it widely applicable in asset management, equipment control, and similar scenarios.
• The product is easy to install and comes in roll-ready packaging for convenient distribution.
Features
• High sensitivity
• Roll shipment, easy to print on the printer for personalized printing
• IP65-rated waterproofing
• Capable of surface color and customized data printing
RF Performance

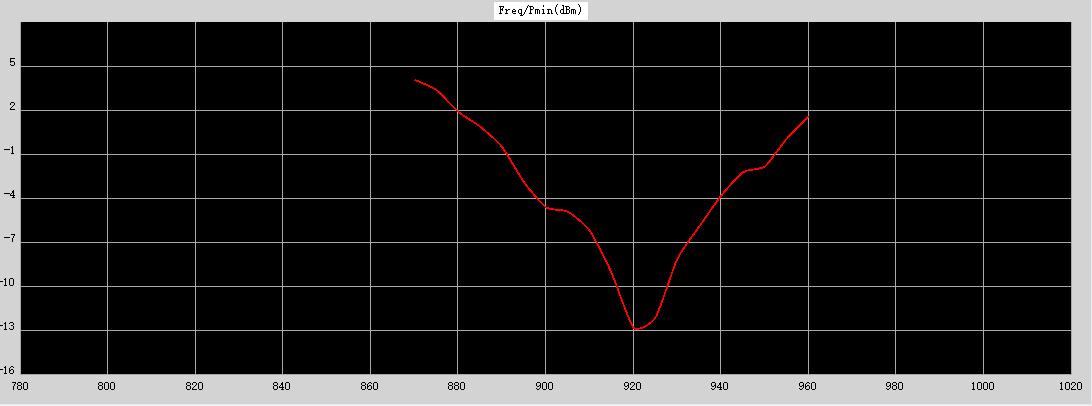

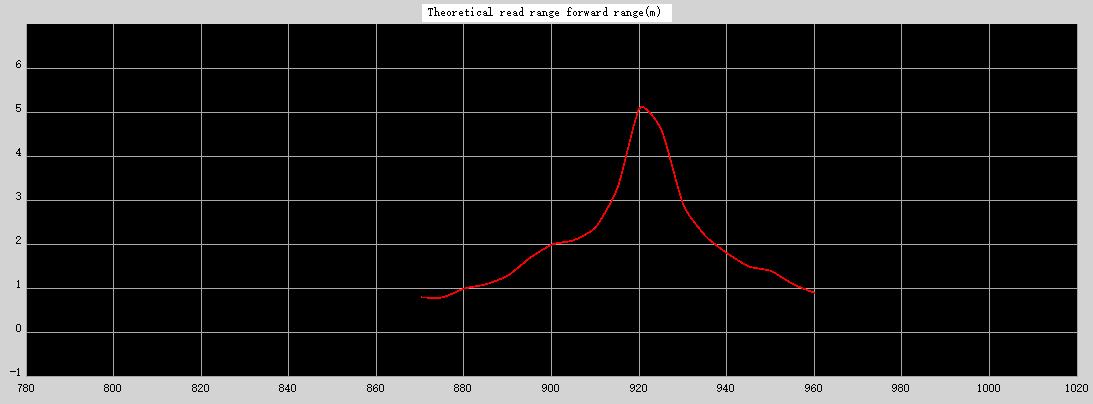

Metal surface:

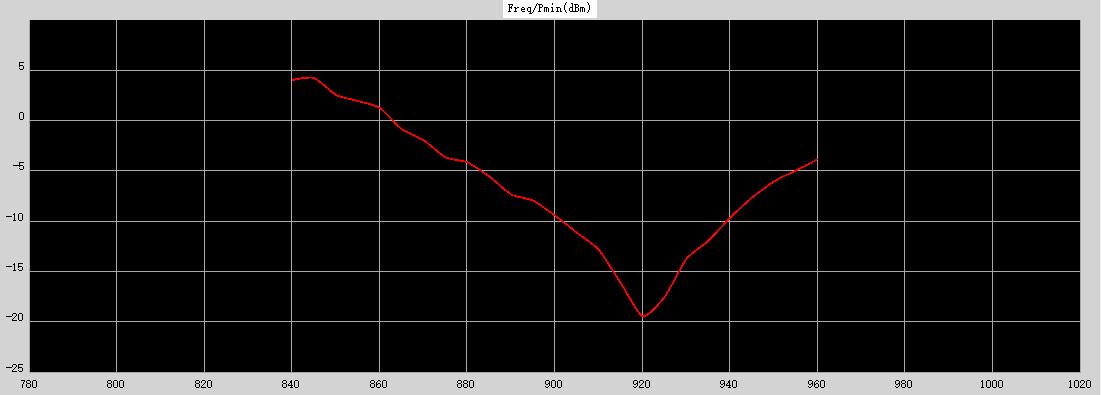

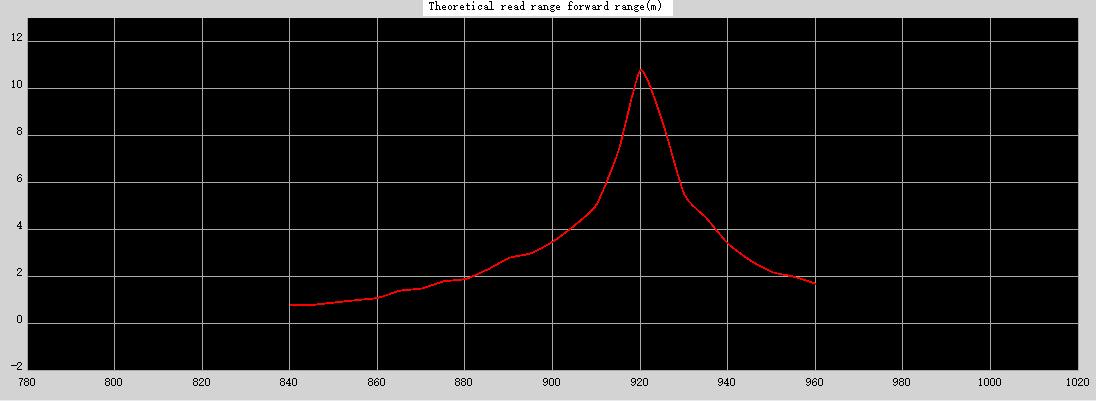

Non-metal surface:
Item | Specification |
Dimensions (L×W×H) | 65*35*1.2mm |
Antenna | Aluminium |
Chip Interconnection Method | Flip chip Bonding |
Operating Frequency | 902-928MHz / 866-868MHz |
Adhesive Backing | 3M 300LSE |
Customization options | Color printing, printable |
Integrated Circuit (IC) | FCC：NXP Ucode8 ETSI：Impinj Monza4QT/NXP Ucode8 |
Protocols Supported | ISO/IEC 18000-6C / EPC Class1 Gen2 |
Tag Material | EVA |
Printers recommended | Sato CL4NX, Postek TXR,Zebra ZT410silverline |
Bare tag colors | White, color can be customized |
Recommended* Operating Temperature | -20℃ to +80℃ |
Recommended* Storage Temperature | -20℃ to +80℃ |
Type | Passive |
Read/write range | 6 meters on metal surface (tested with R2000 module handheld, power 30dBm, depending on environment and equipment) 3 meters on non-metal surface (tested with R2000 module handheld, power 30dBm, depending on environment and equipment) |
Application Areas
• Tool management, instrumentation management
• Asset management, data center server management
• Vehicle management, heavy equipment management
