• It is suitable for indoor or outdoor scenarios, with stable and reliable performance.
• This product uses FR-4 material as the base material. With excellent reliability and consistency, it is widely used in metal environment scenarios such as asset management, logistics, equipment management, and internal production management of enterprises.
• It is easy to deploy, has a compact structure, and is drop-resistant.

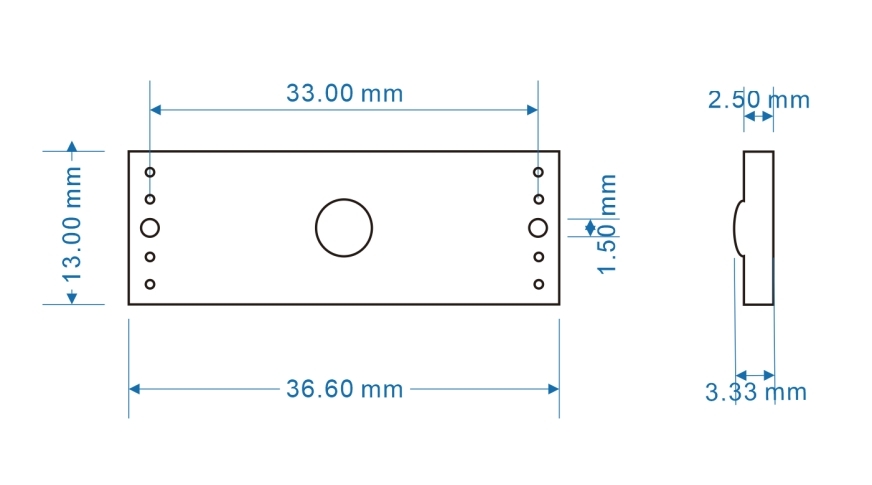

Dimensional Drawing
Features
• High sensitivity
• Adhesive-backed or screw-mounted installation
• IP65-rated waterproofing
• Capable of surface color printing and customized data printing
Item | Specification |
Dimensions (L×W×H) | 36*13*2.5mm Hole: Ø1.5mm*2 |
Antenna | Copper + Gold |
Chip Interconnection Method | Wire Bonding |
Operating Frequency | 902-928MHz / 866-868MHz |
Adhesive Backing | Optional |
Customization options | Screen printing, laser coding, UV inkjet printing |
Integrated Circuit (IC) | Impinj Monza4QT (default) |
Protocols Supported | ISO/IEC 18000-6C / EPC Class1 Gen2 |
Data | 96/128bit EPC / 512bit user memory / 96bit TID |
Tag Material | FR-4 |
Assembly Method | Epoxy Potting Adhesive |
Bare tag colors | Black, color can be customized |
Recommended* Operating Temperature | -20℃ to +80℃ |
Recommended* Storage Temperature | -20℃ to +150℃ |
Type | Passive |
Read/write range | 3 meters on metal surface (tested with R2000 module handheld, power 30dBm, depending on environment and equipment) |
Application Areas
• Tool management, instrumentation management
• Asset management, data center server management
• Warehouse logistics management, pallet management
• Container management, vehicle management, heavy equipment management
