• It is suitable for indoor or outdoor scenarios, with stable and reliable performance.
• This product uses FR-4 material as the base material. With excellent reliability and consistency, it is widely used in metal environment scenarios such as small tool management, instrument tracking management, and equipment management.
• It is easy to deploy, has a compact structure, and is drop-resistant.

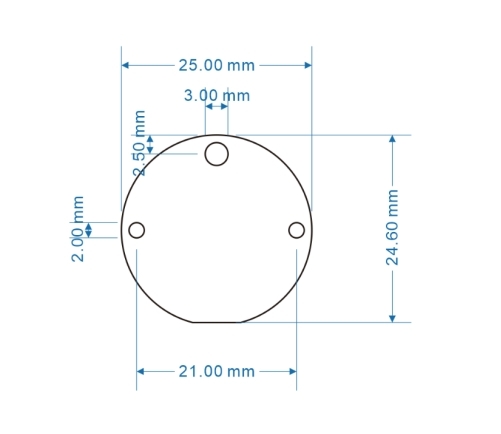

Dimensional Drawing
Features
• High sensitivity
• Adhesive or Embedded installation
• IP65-rated waterproofing
Item | Specification |
Dimensions (L×W×H) | Ø25mm，thickness：2.5mm Hole: Ø3mm*1, Ø2mm*2 |
Antenna | Copper + Gold |
Chip Interconnection Method | Wire Bonding |
Operating Frequency | 902-928MHz / 866-868MHz |
Adhesive Backing | Optional |
Customization options | Screen printing, laser coding, UV inkjet printing |
Integrated Circuit (IC) | Impinj Monza4QT (default) |
Protocols Supported | ISO/IEC 18000-6C / EPC Class1 Gen2 |
Data | 96/128bit EPC / 512bit user memory / 96bit TID |
Tag Material | FR-4 |
Assembly Method | Epoxy Potting Adhesive |
Bare tag colors | Black |
Recommended* Operating Temperature | -20℃ to +80℃ |
Recommended* Storage Temperature | -20℃ to +150℃ |
Type | Passive |
Read/write range | 1~2 meters on metal surface (tested with R2000 module handheld, power 30dBm, depending on environment and equipment) |
Application Areas
• Tool management
• Embedded bolt management
• Equipment & instrument management
• Instrument and meter management
