LED Flexible on-metal UHF RFID Adhesive Label 6025mm_RFID Tags & Inlays_Product

LED Flexible on-metal UHF RFID Adhesive Label 60*25mm

This product, adopting flexible design, it can be installed on irregular plane or curved surface, and supports personalized customization services such as print, coding and printing.

Hotline +86-18710380696

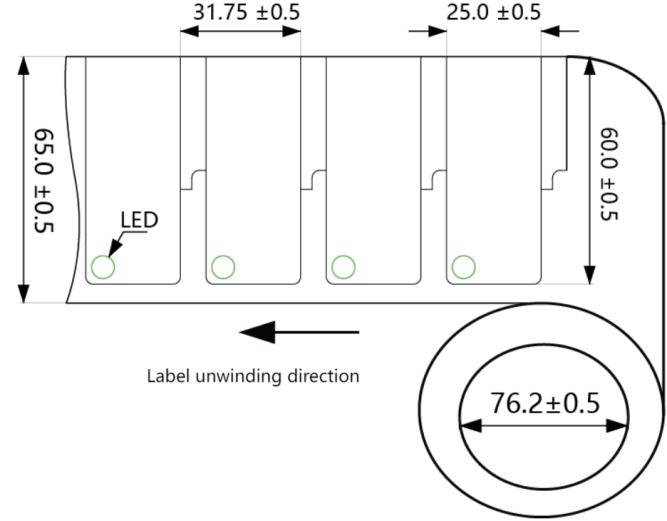

Dimensional Drawing (label unwinding direction)

Electrical Performance (on metal surface)

Item	Specification
Dimensions (L×W×H)	60251.35 mm
Antenna	Aluminum
Operating Frequency	902-928MHz
Tag material	PET
Adhesive	High performance back adhesive
Integrated Circuit (IC)	KX2005X-BL
Protocols Supported	ISO/IEC 18000-6C / EPC Class1 Gen2
Data	EPC: 240bits (one time program) / User: 1312bits (one time program) / TID: 96 bits
Bare tag colors	White, color can be customized
Recommended* Operating Temperature	-40℃ to +85℃
Recommended* Storage Temperature	1 year at 23±3℃/ 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure
IC Life	100,000 Programming cycles, 10 years data retention
ESD Voltage Immunity	2KV, Max. 2000V
Type	Passive
Read/write range	Reading range: 6~7m (fixed reader on metal surface) Reading range: 3~4m (fixed reader in air)

Application Areas

• Tool Tracking & Fixed Assets management

• Medical Equipment Management

• Instrument Tracking

• Production Line Equipment & Warehouse Management

• IT/Telecommunications Asset Management
