Dimensional Drawing

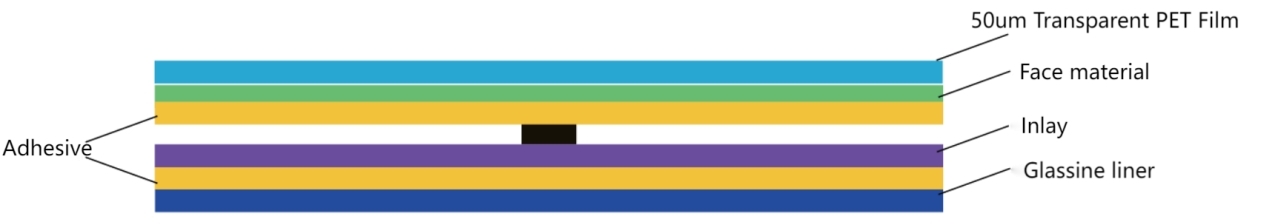

1. Label Structure

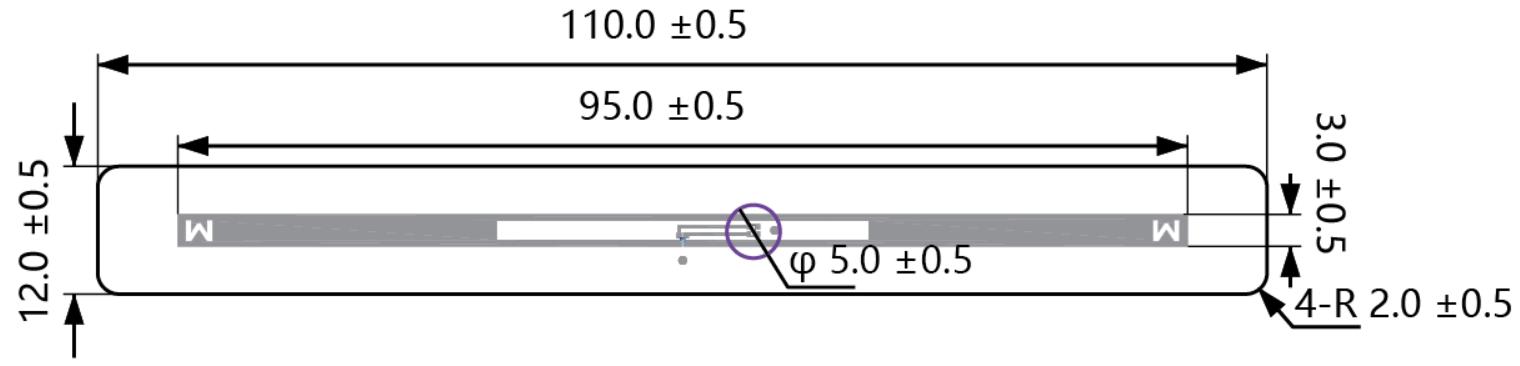

2. Appearance Dimension

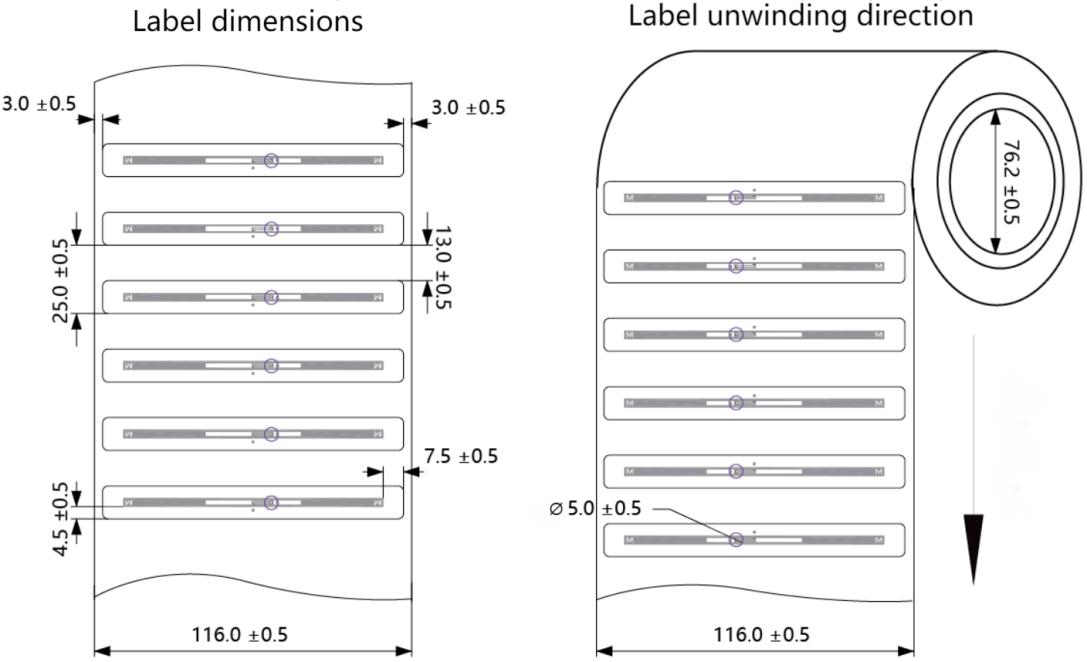

3. Dimensions and Unwinding direction

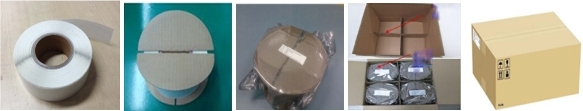

Packaging (2500±5pcs/roll for reference):
Features
• With a high performance passive RFID chip, which can be activated from a long distance to achieve efficient search.
• It can be activated by a RFID read/write device, no need for professional equipment.
• It is a passive electronic tag with a light reminder, flexible and bendable, and not easy to break.
Item | Specification |
Dimensions (L×W×H) | 110*20 mm |
Antenna | Aluminum Etching |
Chip Interconnection Method | Flip chip Bonding |
Operating Frequency | 860-960MHz |
Tag material | PET + Coated Art Paper |
Base material | Glassine paper |
Integrated Circuit (IC) | KX2005X-BL |
Protocols Supported | ISO/IEC 18000-6C / EPC Class1 Gen2 |
Data | EPC: 240bits (one time program) / User: 1312bits (one time program) / TID: 96 bits (read only) / Password: 32bits Access, 32bits Kill (one time program) |
Bare tag colors | White, color can be customized |
Recommended* Operating Temperature | -25℃ to +50℃ |
Recommended* Storage Temperature | 1 year at 23±5℃/ 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure |
IC Life | 100,000 Programming cycles, 10 years data retention |
ESD Voltage Immunity | 2KV, Max. 2000V |
Type | Passive |
Read/write range | Reading range: >12m (fixed), >10m (handheld) LED activated range: >4m (fixed), >2m (handheld) |
Applications
• Suitable for efficient inventory and search of archives, books, and warehoused materials.
• The first choice for a cost - effective inventory and item - searching solution.
