Dimensional Drawing & Physical Specifications

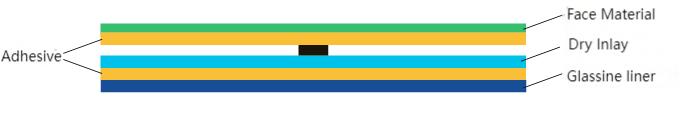

1. Label Structure

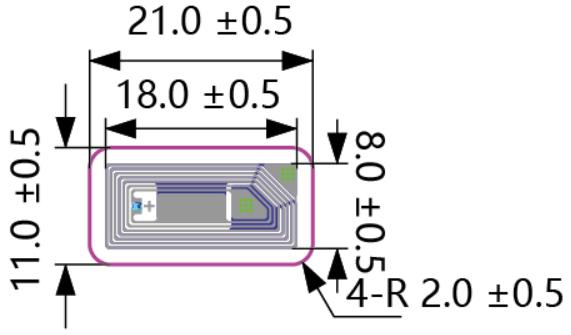

2. Appearance Dimension
3. Dimensions and Unwinding direction
Packaging (2500±10pcs/roll for reference)
Features
• Adopt NXP/NTAG213 chip.
• HF 13.56MHz, ISO 14443A Protocol.
• It supports personalized customization services such as print, coding and printing.
• The size can be customized according to customer requirements.
Item | Specification |
Dimensions (L×W×H) | 21*11 mm |
Antenna | Aluminum Etching |
Operating Frequency | 13.56MHz |
Protocols Supported | ISO/IEC 14443 A |
Base material | Glassine paper |
Integrated Circuit (IC) | NXP/NTAG213 |
Data | 7 bytes UID / 144 bytes User |
Bare tag colors | White, color can be customized |
Recommended* Operating Temperature | -25℃ to +65℃ |
Recommended* Storage Temperature | 1 year at 23±5℃/ 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure |
IC Life | 100,000 Programming cycles, 10 years data retention |
ESD Voltage Immunity | 2KV, Max. 2000V |
Type | Passive |
Application Areas
• Logistics and Asset Tracking: Ideal for tracking items in supply chains, warehouse management, and industrial tool tracking due to their durability and readability
• Library and Archive Management: Streamlining book checkouts, inventory checks, and managing archival materials for efficient retrieval and organization
• Healthcare and Medical Management: Specifically used for tracking medical assets, managing blood bags, and securely linking to patient records with materials safe for medical environments
• Event and Ticketing Solutions: Functioning as digital tickets for swift entry to events, concerts, or conferences
• Retail and Loyalty Programs: Enhancing customer experience by enabling instant redemption of loyalty points and providing product authenticity verification
