Dimensional Drawing & Physical Specifications

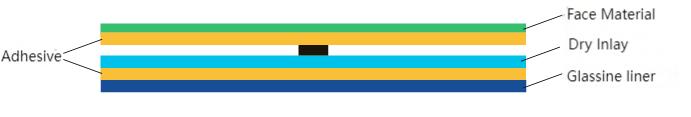

1. Label Structure

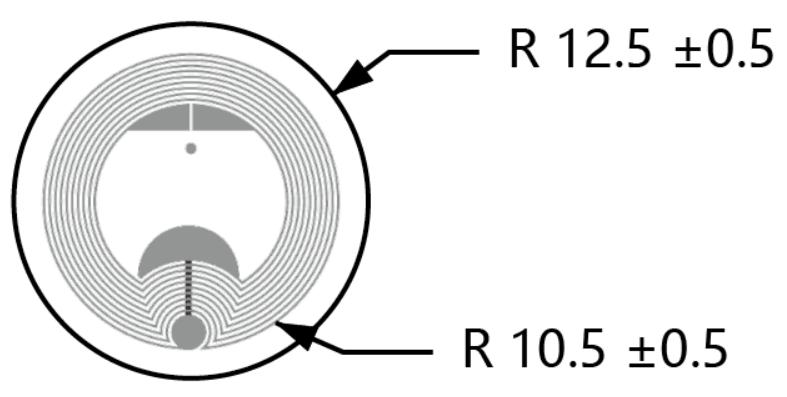

2. Appearance Dimension

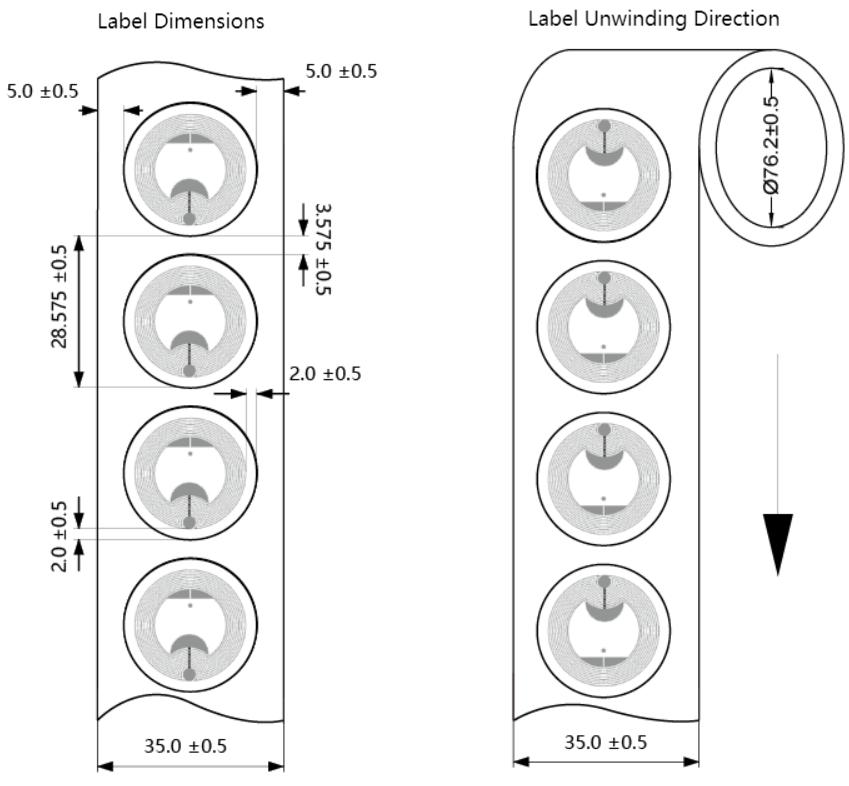

3. Dimensions and Unwinding direction

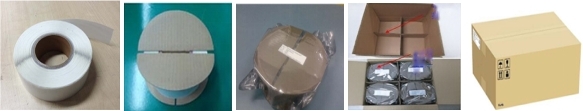

Packaging (2500±10pcs/roll for reference)
Features
• Adopt FM11NT022 chip.
• HF 13.56MHz, ISO 14443A Protocol.
• It supports personalized customization services such as print, coding and printing.
• The size can be customized according to customer requirements.
Item | Specification |
Dimensions (L×W×H) | Ø25mm (each label) |
Antenna | Aluminum Etching |
Operating Frequency | 13.56MHz |
Protocols Supported | ISO/IEC 14443 A |
Base material | Glassine paper |
Integrated Circuit (IC) | FM11NT022 |
Data | 7 bytes UID / 144 bytes User |
Bare tag colors | White, color can be customized |
Recommended* Operating Temperature | -25℃ to +65℃ |
Recommended* Storage Temperature | 1 year at 23±5℃/ 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure |
IC Life | 100,000 Programming cycles, 10 years data retention |
ESD Voltage Immunity | 2KV, Max. 2000V |
Type | Passive |
Application Areas
• Library and Archive Management: Affixing to book spines, labeling of archival bags/files/boxes.
• Retail and Product Management: Product price tags, small electronic products, cosmetics, apparel hangtags.
• Logistics and Warehouse Management: Identification of small parcels, cartons, and shipping documents.
• Asset and Document Management: Office equipment (e.g., computer hosts, monitors), important documents, instruments.
• Ticketing and Access Control: Event tickets, employee badges, membership cards.
